Default My PCM prep for the chip arriving tomorrow

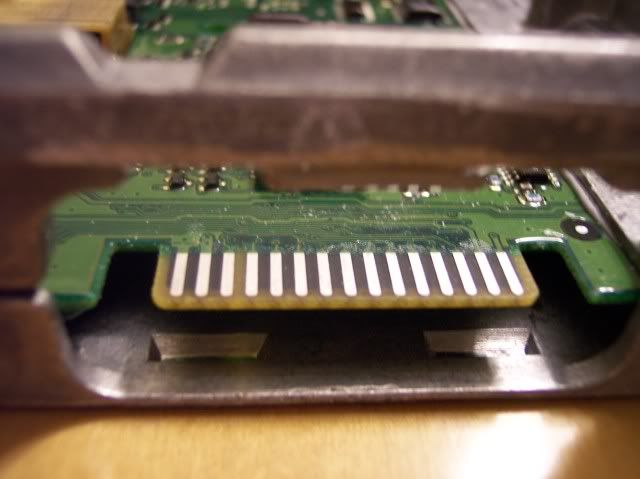

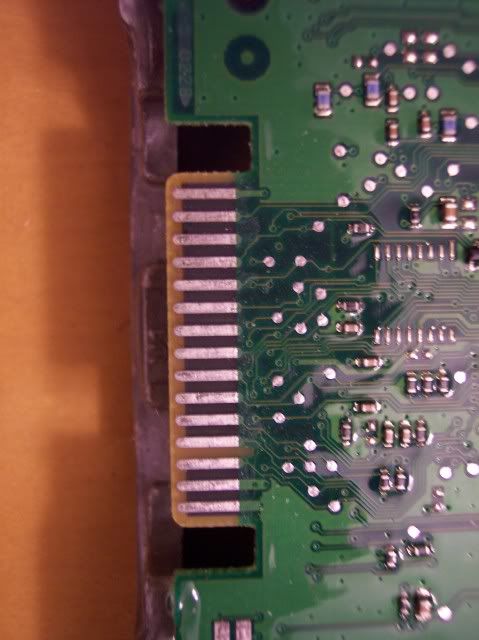

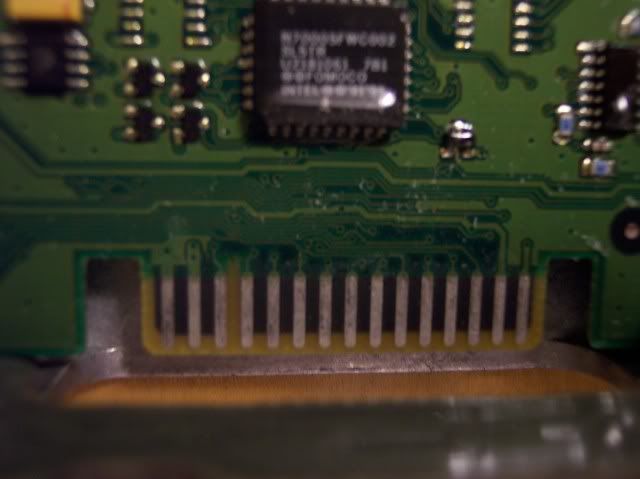

You guys tell me if this looks clean of silicon:

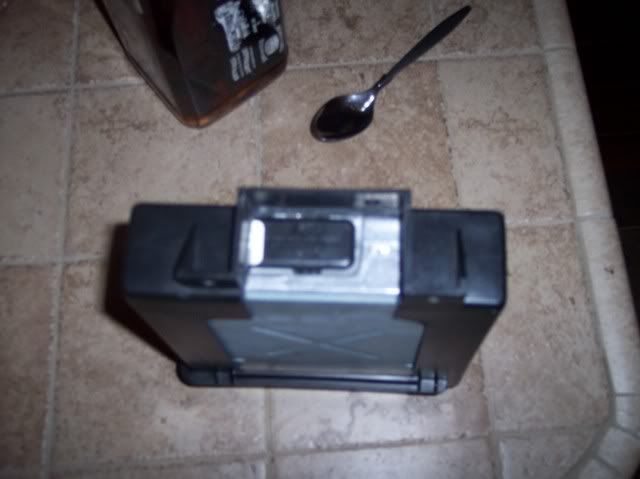

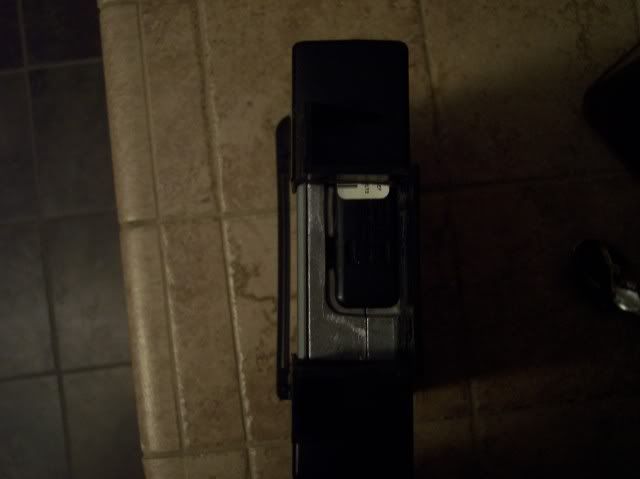

And this is how I cut the holder bracket to allow for room for the chord. Having never seen an installed chip before, I don't know if this is a big enough hole for it or not.





How do they look?????

Edit: HAHA, I just noticed the bottle of Jack in the last picture! Well,that's my wife's favorite drink when watching Lost, I'm more of a beer man myself!
__________________
Bob-

2003 F250 Lariat 7.3PSD CC SB FX4

Kwik (6637) Filter, RE 2.5" leveling kit, F350 Rear Blocks, TC Lock, Fumoto, EBPV/Exhaust Brake,6.0 Tranny Cooler, AIH Delete, IssPro EV2 Gauges, PHP Phoenix stock, 25tow, 40tow, 65tow, 80dd, 100perf, In-tank mods, Muffler Delete, WW, FRx,HPx, JW Stage 1 Trans, Swamps HV/HF IDM
-Pulling a 38' Forest River Sierra 5th Wheel
  #2
Old Wed, February 17th, 2010, 09:38 PM
cleatus12r's Avatar
cleatus12r cleatus12r is offline
F Your Yankee Blue Jeans

Join Date: Jan 2009
Location: Somewhere in Montana
Posts: 2,665
cleatus12r is a name known to allcleatus12r is a name known to allcleatus12r is a name known to allcleatus12r is a name known to allcleatus12r is a name known to allcleatus12r is a name known to all
Default
Actually, Bob, those traces look a little TOO clean. You may actually have issues with the thickness of the board.

You need to cut a little bit more of the holder out to the top (left side of the photo) and get rid of the top mounting bolt boss and then you'll be good to go. You only need one bolt holding the PCM holder in place anyway (and the bottom bolt happens to have the metal tab in it).
__________________
Tuning, PCM flashing, and burning chips for 7.3s since 2008. Repairing all aspects of 7.3L Powerstrokes for 25 years.
Eight 7.3L PSDs in the driveway including a 1994 Crown Vic and 1973 F100/2002 F350. Looking for the next victim.
  #3
Old Wed, February 17th, 2010, 09:39 PM
cleatus12r's Avatar
cleatus12r cleatus12r is offline
F Your Yankee Blue Jeans

Join Date: Jan 2009
Location: Somewhere in Montana
Posts: 2,665
cleatus12r is a name known to allcleatus12r is a name known to allcleatus12r is a name known to allcleatus12r is a name known to allcleatus12r is a name known to allcleatus12r is a name known to all
Default
I am going to move a few of these posts to the Phoenix section, so look for them there from now on.
__________________
Tuning, PCM flashing, and burning chips for 7.3s since 2008. Repairing all aspects of 7.3L Powerstrokes for 25 years.
Eight 7.3L PSDs in the driveway including a 1994 Crown Vic and 1973 F100/2002 F350. Looking for the next victim.
  #4
Old Wed, February 17th, 2010, 09:41 PM
Robert6401's Avatar
Robert6401 Robert6401 is offline
Triple Whopper with Cheese

Join Date: Jan 2010
Location: Gilbert, SC
Posts: 174
Robert6401 is on a distinguished road
Default
Quote:
Originally Posted by cleatus12r View Post
Actually, Bob, those traces look a little TOO clean. You may actually have issues with the thickness of the board.
Are you serious about this part? I didn't use anythng but my fingernail and toothpicks to clean between the fingers of the connector.
__________________
Bob-

2003 F250 Lariat 7.3PSD CC SB FX4

Kwik (6637) Filter, RE 2.5" leveling kit, F350 Rear Blocks, TC Lock, Fumoto, EBPV/Exhaust Brake,6.0 Tranny Cooler, AIH Delete, IssPro EV2 Gauges, PHP Phoenix stock, 25tow, 40tow, 65tow, 80dd, 100perf, In-tank mods, Muffler Delete, WW, FRx,HPx, JW Stage 1 Trans, Swamps HV/HF IDM
-Pulling a 38' Forest River Sierra 5th Wheel
  #5
Old Wed, February 17th, 2010, 09:44 PM
cleatus12r's Avatar
cleatus12r cleatus12r is offline
F Your Yankee Blue Jeans

Join Date: Jan 2009
Location: Somewhere in Montana
Posts: 2,665
cleatus12r is a name known to allcleatus12r is a name known to allcleatus12r is a name known to allcleatus12r is a name known to allcleatus12r is a name known to allcleatus12r is a name known to all
Default
They look copper color in the pictures. Are they still silver? If they're still silver then you have nothing to worry about.

I use my fingernails too.
__________________
Tuning, PCM flashing, and burning chips for 7.3s since 2008. Repairing all aspects of 7.3L Powerstrokes for 25 years.
Eight 7.3L PSDs in the driveway including a 1994 Crown Vic and 1973 F100/2002 F350. Looking for the next victim.
  #6
Old Wed, February 17th, 2010, 09:46 PM
Robert6401's Avatar
Robert6401 Robert6401 is offline
Triple Whopper with Cheese

Join Date: Jan 2010
Location: Gilbert, SC
Posts: 174
Robert6401 is on a distinguished road
Default
yeah, I think thats just the flash. They arent copper colored at all, they are totally silver. I was more concerned about whether or not they looked free of silicone.
__________________
Bob-

2003 F250 Lariat 7.3PSD CC SB FX4

Kwik (6637) Filter, RE 2.5" leveling kit, F350 Rear Blocks, TC Lock, Fumoto, EBPV/Exhaust Brake,6.0 Tranny Cooler, AIH Delete, IssPro EV2 Gauges, PHP Phoenix stock, 25tow, 40tow, 65tow, 80dd, 100perf, In-tank mods, Muffler Delete, WW, FRx,HPx, JW Stage 1 Trans, Swamps HV/HF IDM
-Pulling a 38' Forest River Sierra 5th Wheel
  #7
Old Wed, February 17th, 2010, 09:48 PM
cleatus12r's Avatar
cleatus12r cleatus12r is offline
F Your Yankee Blue Jeans

Join Date: Jan 2009
Location: Somewhere in Montana
Posts: 2,665
cleatus12r is a name known to allcleatus12r is a name known to allcleatus12r is a name known to allcleatus12r is a name known to allcleatus12r is a name known to allcleatus12r is a name known to all
Default
Yeah, they look really good then, Bob. I was serious about being too clean. Most folks will sand all of the tinning off of the traces and then the chip terminals won't make good contact due to the thickness problem....you'll see what I mean when you get the chip.
__________________
Tuning, PCM flashing, and burning chips for 7.3s since 2008. Repairing all aspects of 7.3L Powerstrokes for 25 years.
Eight 7.3L PSDs in the driveway including a 1994 Crown Vic and 1973 F100/2002 F350. Looking for the next victim.
  #8
Old Wed, February 17th, 2010, 09:49 PM
Robert6401's Avatar
Robert6401 Robert6401 is offline
Triple Whopper with Cheese

Join Date: Jan 2010
Location: Gilbert, SC
Posts: 174
Robert6401 is on a distinguished road
Default
With regards to the hole in the pcm holder, I thought I was best off going conservative tonight, and then if I have to cut more off tomorrow thats fine. I just didnt want to go too far tonight
__________________
Bob-

2003 F250 Lariat 7.3PSD CC SB FX4

Kwik (6637) Filter, RE 2.5" leveling kit, F350 Rear Blocks, TC Lock, Fumoto, EBPV/Exhaust Brake,6.0 Tranny Cooler, AIH Delete, IssPro EV2 Gauges, PHP Phoenix stock, 25tow, 40tow, 65tow, 80dd, 100perf, In-tank mods, Muffler Delete, WW, FRx,HPx, JW Stage 1 Trans, Swamps HV/HF IDM
-Pulling a 38' Forest River Sierra 5th Wheel
  #9
Old Wed, February 17th, 2010, 09:52 PM
cleatus12r's Avatar
cleatus12r cleatus12r is offline
F Your Yankee Blue Jeans

Join Date: Jan 2009
Location: Somewhere in Montana
Posts: 2,665
cleatus12r is a name known to allcleatus12r is a name known to allcleatus12r is a name known to allcleatus12r is a name known to allcleatus12r is a name known to allcleatus12r is a name known to all
Default
You won't get the chip in there........

Not trying to be sarcastic or negative, but it won't go.

ON EDIT:

My daily driver test mule doesn't even have a holder on it. I change the PCM so often that I just let it rest right on the metal bracket.
__________________
Tuning, PCM flashing, and burning chips for 7.3s since 2008. Repairing all aspects of 7.3L Powerstrokes for 25 years.
Eight 7.3L PSDs in the driveway including a 1994 Crown Vic and 1973 F100/2002 F350. Looking for the next victim.
  #10
Old Wed, February 17th, 2010, 09:53 PM
Robert6401's Avatar
Robert6401 Robert6401 is offline
Triple Whopper with Cheese

Join Date: Jan 2010
Location: Gilbert, SC
Posts: 174
Robert6401 is on a distinguished road
Default
Quote:
Originally Posted by cleatus12r View Post
Yeah, they look really good then, Bob. I was serious about being too clean. Most folks will sand all of the tinning off of the traces and then the chip terminals won't make good contact due to the thickness problem....you'll see what I mean when you get the chip.
Well, correct me if Im wrong, but I cant imagine that its physically possible to sand the tinning off with just a thumbnail.
__________________
Bob-

2003 F250 Lariat 7.3PSD CC SB FX4

Kwik (6637) Filter, RE 2.5" leveling kit, F350 Rear Blocks, TC Lock, Fumoto, EBPV/Exhaust Brake,6.0 Tranny Cooler, AIH Delete, IssPro EV2 Gauges, PHP Phoenix stock, 25tow, 40tow, 65tow, 80dd, 100perf, In-tank mods, Muffler Delete, WW, FRx,HPx, JW Stage 1 Trans, Swamps HV/HF IDM
-Pulling a 38' Forest River Sierra 5th Wheel
